Overview of Compose Elements


Compose allows you to build interactive pages and share them with end users.
Content for the pages (charts and tables) will need to be created using Query prior to using Compose.

After building a visualization in Query, proceed by clicking Compose.

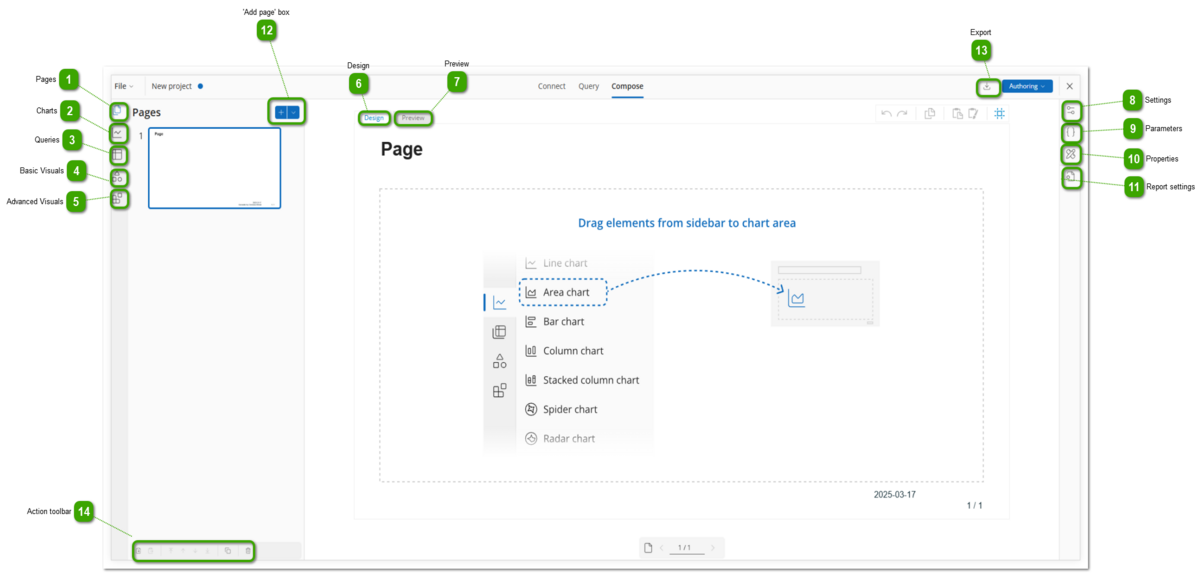

Overview of Compose Elements


1

Pages

1. Pages
This option gives you the opportunity to see the entire page ribbon that includes all pages from a given report.

2

Charts

2. Charts
Click the Charts icon to expand the menu. This will list all of the charts that are available in Compose.
As soon as you drag and drop the required chart on the page, you must add data to it by clicking Add Query and selecting a query from the drop-down list.

3

Queries


3. Queries
If you click the Queries icon, you will find the charts and tables that were previously created in Query. You can drag and drop the required queries on the page you are creating.

4

Basic Visuals


4. Basic Visuals
This section gives you possibility to add 'Image', 'Text field', and 'Shapes' to your page. You can insert images to illustrate concepts, use text fields to add descriptions or labels, and include shapes to highlight key areas or create visual distinctions.
5

Advanced Visuals


5. Advanced Visuals
This section will help you add 'Shapes widgets', 'Multi shape widgets', 'Gauge widgets', 'Dynamic image' and 'Grid widget' to your page.
6

Design


Here, you can change the display order of columns in bar charts or columns and/or rows in tables.
7

Preview


7. Preview
In Preview, you can customize the page content, options, and controls.
8

Settings


8. Settings
Under Settings, you can manage the axis, labels, grid, and other visual aspects of the page.
9

Parameters


9. Parameters
Here you can change the parameters of a given page.
10

Properties


10. Properties
Properties is a section where you can adjust the settings of the page that was selected, such as name.
11

Report settings


11. Report settings
The theme of the report can be changed here.
12

'Add page' box


12. 'Add page' box
Via this section, you can add a page to your report. You can add a blank page or a page from another report.
13

Export


13. Export
Here you can export the entire report, selected pages or the current page to a file. Available formats: PowerPoint, Excel, and PDF.
14

Action toolbar

14. Action toolbar
This toolbar provides actions related to the Table Tree and Page Ribbon. You can use it to rearrange the order of pages, copy pages, or delete them, making it easier to manage your document structure efficiently.
